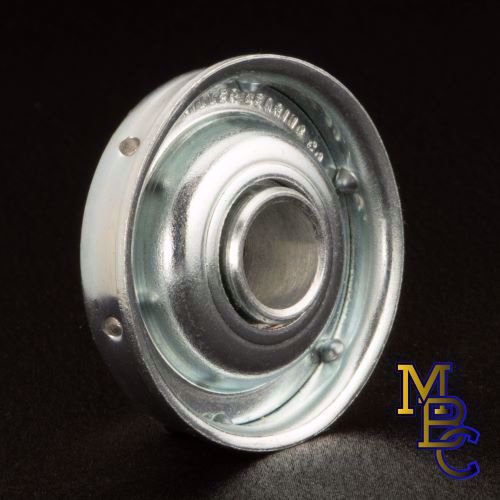

Contains 11- 1/4" Diameter balls.

May be ordered with light oil or grease packed lubricant.

T added to the end of the part number designates a nylatron seal added to the front of the bearing.

Bore dimensions are interchangeable throughout F-series 1625-1775 bearings.

Contains 11- 1/4" Diameter balls.

May be ordered with light oil or grease packed lubricant.

T added to the end of the part number designates a nylatron seal added to the front of the bearing.

Bore dimensions are interchangeable throughout F-series 1625-1775 bearings.

Products specifications
(A) Bearing Body Diameter 1.775" - 1.785"
(B) Bearing Insertion Depth 0.3594" (23/64")
(C) Bore Extension 0.1719" (11/64")
(D) Length through Bore 0.531" (17/32")
(E) Flange Diameter 1.91" (1-29/32")
Load Rating 135#
BORE SIZE 0.382/0.377" (3/8" Round)
Tube Size / Material (!!REF. ONLY!!) 1.9"O.D. x 16ga (1.770"I.D.)
Weight / 1,000 pcs 175 Lbs (79.37 kg)
