FC-1250-5

Previous productF-2511-11HVSP
Next productFC-1250-5H

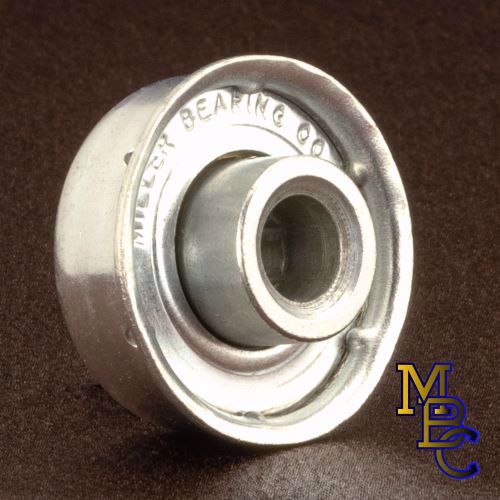

Picture of FC-1250-5 Picture of FC-1250-5

RESOURCES



TEMPERATURE RATINGS



HEX BORE MEASURING GUIDE



Be the first to review this product

Contains 12- 7/32" Diameter balls.

May be ordered with light oil or grease packed lubricant.

T added to the end of the part number designates a nylatron seal added to the front of the bearing.



Contains 12- 7/32" Diameter balls.

May be ordered with light oil or grease packed lubricant.

T added to the end of the part number designates a nylatron seal added to the front of the bearing.



Products specifications
(A) Bearing Body Diameter 1.250" - 1.260"
(B) Bearing Insertion Depth 0.4531" (29/64")
(C) Bore Extension 0.2500" (1/4")
(D) Length through Bore 0.703" (45/64")
(E) Flange Diameter 1.37" (1-3/8")
Load Rating 198#
BORE SIZE 0.319/0.315" (5/16" Round)
Tube Size / Material (!!REF. ONLY!!) 1-3/8"O.D. x 16ga Steel (1.245"I.D.)
Weight / 1,000 pcs 106.25 Lbs (48.19 kg)
