MFC-1500-7H

Previous productMF-2511-7HVSP

Next productMFC-1710-7H

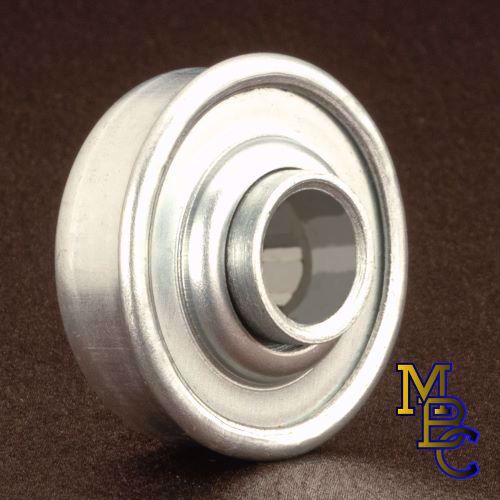

Picture of MFC-1500-7H

Picture of MFC-1500-7H

Picture of MFC-1500-7H

Be the first to review this product

Contains 11- 9/32" Diameter balls.

May be ordered with light oil or grease packed lubricant.

Contains 11- 9/32" Diameter balls.

May be ordered with light oil or grease packed lubricant.

Products specifications

(A) Bearing Body Diameter	1.500" - 1.510"
(B) Bearing Insertion Depth	0.4375" (7/16")
(C) Bore Extension	0.3125" (5/16")
(D) Length through Bore	0.750" (3/4")
(E) Flange Diameter	1.63" (1-5/8")
Load Rating	248#
BORE SIZE	0.451/0.450" (7/16" Hex)
Tube Size / Material (!!REF. ONLY!!)	1-5/8"O.D. x 16ga (1.495" I.D.)
Weight / 1,000 pcs	175 Lbs (79.37 kg)
