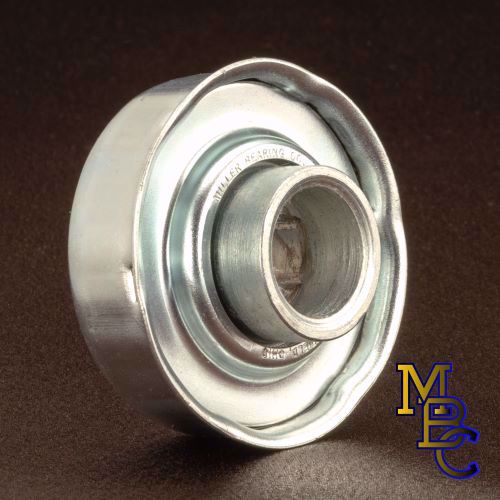

MFC-2280-12H ⚠⚠

Contains 13- 3/8" Diameter balls.

MFC designates an all metal inner race.

The unique rib feature is designed to help accommodate the variations in tubing I.D. tolerances.

S added to the end of the part number designates a felt seal added to the front of the bearing.

T added to the end of the part number designates a Teflon seal added to the front of the bearing.

Also available with a non-ribbed case which has a 2.265 A dimension. Substitute 2280 with 2265 in the part number to specify this feature.

⚠⚠ ~ 3/4" HEX BORE IS NOT COMMON ~

PLEASE VERIFY USING HEX BORE MEASUREMENT GUIDE UNDER RESOURCES

Contains 13- 3/8" Diameter balls.

MFC designates an all metal inner race.

The unique rib feature is designed to help accommodate the variations in tubing I.D. tolerances.

S added to the end of the part number designates a felt seal added to the front of the bearing.

T added to the end of the part number designates a Teflon seal added to the front of the bearing.

Also available with a non-ribbed case which has a 2.265 A dimension. Substitute 2280 with 2265 in the part number to specify this feature.

⚠⚠ ~ 3/4" HEX BORE IS NOT COMMON ~

PLEASE VERIFY USING HEX BORE MEASUREMENT GUIDE UNDER RESOURCES

Products specifications

(A) Bearing Body Diameter	2.280" - 2.290"
(A1) Small Diameter on Ribbed Case	2.250"
(B) Bearing Insertion Depth	0.7188" (23/32")
(C) Bore Extension	0.4688" (15/32")
(D) Length through Bore	1.187" (1-3/16")
(E) Flange Diameter	2.44" (2-7/16")
Load Rating	425#
BORE SIZE	0.770/0.765" (3/4" Hex)
Tube Size / Material (!!REF. ONLY!!)	2-1/2"O.D. x 11ga (2.260" I.D.)
Weight / 1,000 pcs	562.5 Lbs (255.14 kg)
