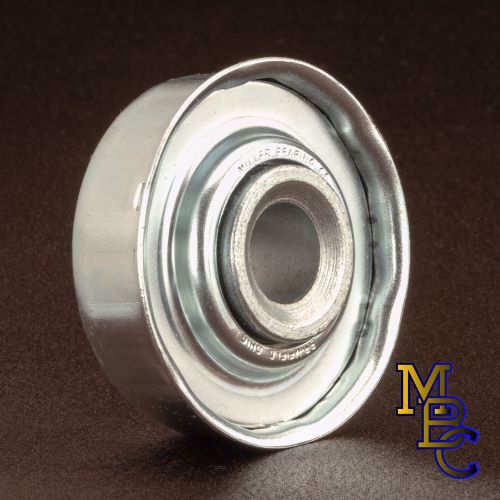

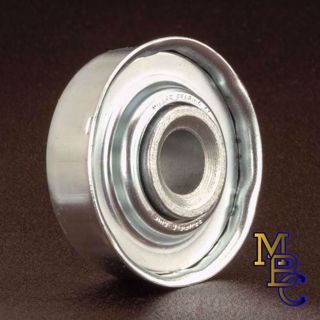

Contains 13- 3/8" Diameter balls.

MFC designates an all metal inner race.

The unique rib feature is designed to help accommodate the variations in tubing I.D. tolerances.

S added to the end of the part number designates a felt seal added to the front of the bearing.

T added to the end of the part number designates a Teflon seal added to the front of the bearing.

Also available with a non-ribbed case which has a 2.265 A dimension. Substitute 2280 with 2265 in the part number to specify this feature.

Contains 13- 3/8" Diameter balls.

MFC designates an all metal inner race.

The unique rib feature is designed to help accommodate the variations in tubing I.D. tolerances.

S added to the end of the part number designates a felt seal added to the front of the bearing.

T added to the end of the part number designates a Teflon seal added to the front of the bearing.

Also available with a non-ribbed case which has a 2.265 A dimension. Substitute 2280 with 2265 in the part number to specify this feature.

Products specifications
(A) Bearing Body Diameter 2.280" - 2.290"
(A1) Small Diameter on Ribbed Case 2.250"
(B) Bearing Insertion Depth 0.7188" (23/32")
(C) Bore Extension 0.2188" (7/32")
(D) Length through Bore 0.937" (15/16")
(E) Flange Diameter 2.44" (2-7/16")
Load Rating 425#
BORE SIZE 0.505/0.501" (1/2" Round)
Tube Size / Material (!!REF. ONLY!!) 2-1/2"O.D. x 11ga (2.260" I.D.)
Weight / 1,000 pcs 587.5 Lbs (266.48 kg)
