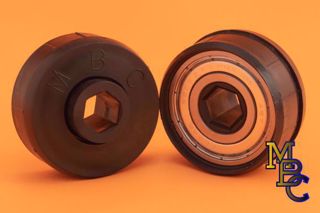

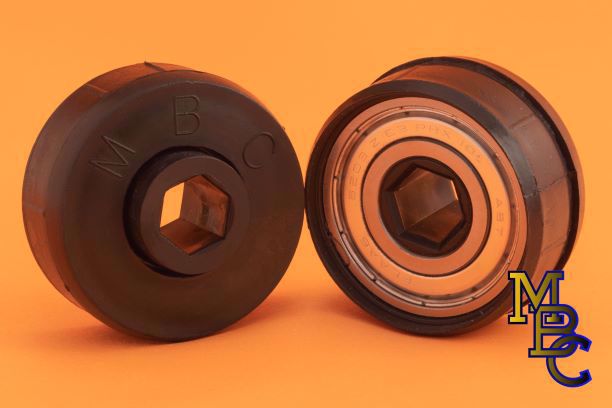

Contains 8- 17/64" Diameter balls and a retainer.

This bearing is a precision ABEC-1 rated 6203 bearing, pressed into our specially designed housing.

The precision bearing combined with our plastic insert gives maximum noise reduction to the conveyor system.

This bearing come grease packed and dust shielded.

Contains 8- 17/64" Diameter balls and a retainer.

This bearing is a precision ABEC-1 rated 6203 bearing, pressed into our specially designed housing.

The precision bearing combined with our plastic insert gives maximum noise reduction to the conveyor system.

This bearing come grease packed and dust shielded.

Products specifications
(A) Bearing Body Diameter 1.775" - 1.785"
(B) Bearing Insertion Depth 0.490"
(C) Bore Extension 0.375" (3/8")
(D) Length through Bore 0.865" (55/64")
(E) Flange Diameter 1.83" (1-53/64")
Load Rating 1000#
BORE SIZE 0.451/0.450" (7/16" Hex)
Tube Size / Material (!!REF. ONLY!!) 1.9"O.D. x 16ga (1.770"I.D.)
Weight / 1,000 pcs 175 Lbs (79.37 kg)
