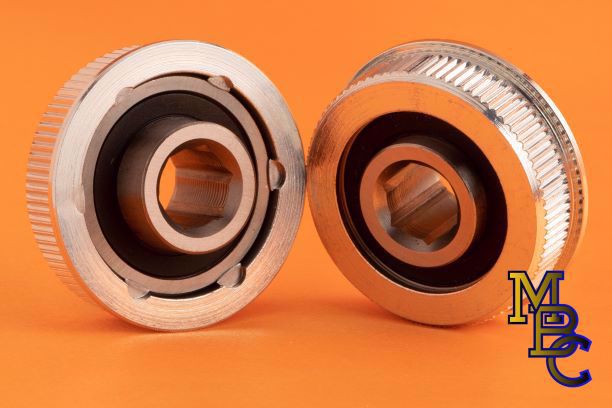

This assembly incorporates a custom designed ABEC-1 Precision Bearing pressed into our traditional "FR" Series style housing with a 16 teeth / inch knurl to assist in the assembly of the roller.

Bearing Construction:
Custom ABEC-1 Precision Bearing construction: AISI52100 Steel ~ Nitrile Seals ~ Nylon Ball retainer
Outer Cup Construction: Zinc plated Steel

Using standard dimensions as our Semi-Precision "FR" series bearings results in minimal / no modification in current roller assembly processes for OEM's.

Same Tooling; Same Process; Superior Product!

This assembly incorporates a custom designed ABEC-1 Precision Bearing pressed into our traditional "FR" Series style housing with a 16 teeth / inch knurl to assist in the assembly of the roller.

Bearing Construction:
Custom ABEC-1 Precision Bearing construction: AISI52100 Steel ~ Nitrile Seals ~ Nylon Ball retainer
Outer Cup Construction: Zinc plated Steel

Using standard dimensions as our Semi-Precision "FR" series bearings results in minimal / no modification in current roller assembly processes for OEM's.

Same Tooling; Same Process; Superior Product!

Products specifications
(A) Bearing Body Diameter 1.598" - 1.608"
BORE SIZE 0.451/0.450" (7/16" Hex)
(D) Length through Bore 0.781" (25/32")
Tube Size / Material (!!REF. ONLY!!) 1-3/4" O.D. x 14ga (1.584" I.D.)
(E) Flange Diameter 1.73" (1-47/64")
(B) Bearing Insertion Depth 0.490"
(C) Bore Extension 0.2813" (9/32")
Load Rating 1250#
Weight / 1,000 pcs 207.5 Lbs (94.12 kg)
