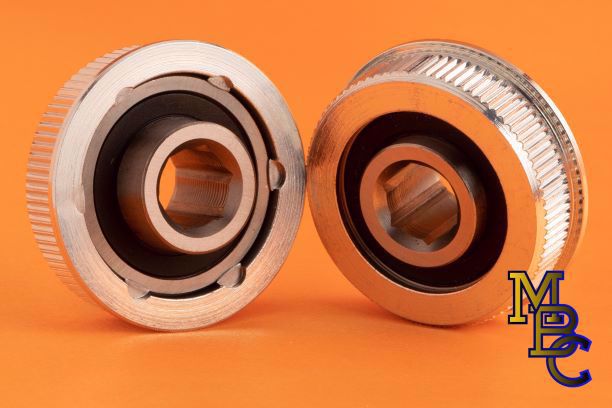

This assembly incorporates a custom designed ABEC-1 Precision Bearing pressed into our traditional "FR" Series style housing with a 16 teeth / inch knurl to assist in the assembly of the roller.

Bearing Construction:
Custom ABEC-1 Precision Bearing construction: AISI52100 Steel ~ Nitrile Seals ~ Nylon Ball retainer
Outer Cup Construction: Zinc plated Steel

Using standard dimensions as our Semi-Precision "FR" series bearings results in minimal / no modification in current roller assembly processes for OEM's.

Same Tooling; Same Process; Superior Product!

This assembly incorporates a custom designed ABEC-1 Precision Bearing pressed into our traditional "FR" Series style housing with a 16 teeth / inch knurl to assist in the assembly of the roller.

Bearing Construction:
Custom ABEC-1 Precision Bearing construction: AISI52100 Steel ~ Nitrile Seals ~ Nylon Ball retainer
Outer Cup Construction: Zinc plated Steel

Using standard dimensions as our Semi-Precision "FR" series bearings results in minimal / no modification in current roller assembly processes for OEM's.

Same Tooling; Same Process; Superior Product!

Products specifications
(A) Bearing Body Diameter 1.875" - 1.885"
(B) Bearing Insertion Depth 0.500" (1/2")
(C) Bore Extension 0.2813" (9/32")
(D) Length through Bore 0.781" (25/32")
(E) Flange Diameter 2.00" (2")
BORE SIZE 0.451/0.450" (7/16" Hex)
Load Rating 1250#
Tube Size / Material (!!REF. ONLY!!) 2" O.D. x 16ga (1.870" I.D.)
Weight / 1,000 pcs 309.5 Lbs (140.38 kg)
