R-2250-8V

Previous productR-2250-8
Next productR-2375-8

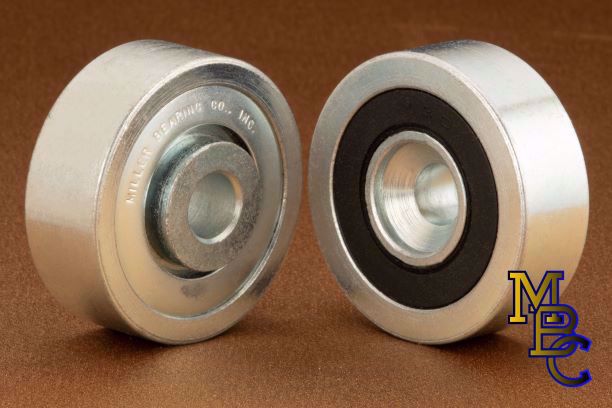

Picture of R-2250-8V Picture of R-2250-8V

RESOURCES



TEMPERATURE RATINGS



HEX BORE MEASURING GUIDE



Be the first to review this product

Contains 9- 5/16" Diameter balls and a nylon retainer.

May be ordered dry, with light oil or grease packed lubricant.

These bearings come standard with a nitrile seal added to each side of the bearing.

Contains 9- 5/16" Diameter balls and a nylon retainer.

May be ordered dry, with light oil or grease packed lubricant.

These bearings come standard with a nitrile seal added to each side of the bearing.

Products specifications
(A) Bearing Body Diameter 2.230" - 2.240"
(B) Bearing Insertion Depth 0.7813" (25/32")
(C) Bore Extension 0.1563" (5/32")
(D) Length through Bore 0.937" (15/16")
BORE SIZE 0.505/0.501" (1/2" Round)
Load Rating 1050#
Weight / 1,000 pcs 631.25 Lbs (286.33 kg)
