WF-1375-10

Previous productR-2375-8V
Next productWF-1375-12
Picture of WF-1375-10 Picture of WF-1375-10

RESOURCES



TEMPERATURE RATINGS



HEX BORE MEASURING GUIDE



Be the first to review this product

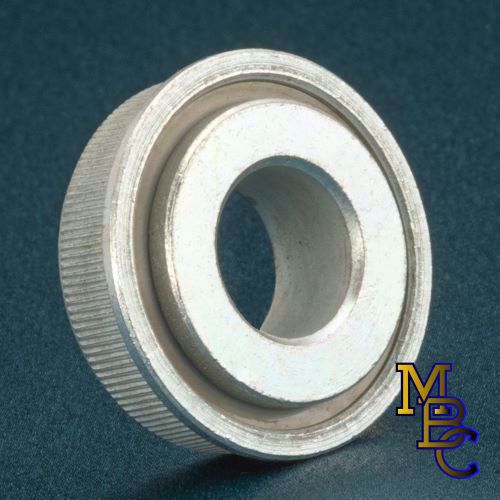

Contains 18-3/16" Diameter balls.

These bearings come standard with a seal on the front and a metal shield on the back.

DISCONTINUED ITEM, PLEASE CALL FOR AVAILABILITY!!

ITEM REPLACEMENT; SEE FR-1375-10DS

Contains 18-3/16" Diameter balls.

These bearings come standard with a seal on the front and a metal shield on the back.

DISCONTINUED ITEM, PLEASE CALL FOR AVAILABILITY!!

ITEM REPLACEMENT; SEE FR-1375-10DS

Products specifications
(A) Bearing Body Diameter 1.375" - 1.385"
(B) Bearing Insertion Depth 0.3750" (3/8")
(C) Bore Extension 0.125" (1/8")
(D) Length through Bore 0.500" (1/2")
(E) Flange Diameter 1.50" (1-1/2")
Load Rating 196#
BORE SIZE 0.629/0.627" (5/8" Round)
Tube Size / Material (!!REF. ONLY!!) 1-1/2"O.D. x 16ga (1.370" I.D.)
Weight / 1,000 pcs 112.5 Lbs (51.02 kg)
