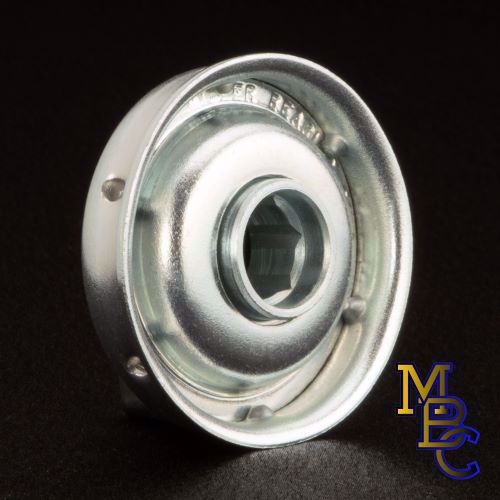

Contains 11- 1/4" Diameter balls.

May be ordered with light oil or grease packed lubricant.

T added to the end of the part number designates a nylatron seal added to the front of the bearing.

Bore dimensions are interchangeable throughout F-series 1625-1775 bearings.

Contains 11- 1/4" Diameter balls.

May be ordered with light oil or grease packed lubricant.

T added to the end of the part number designates a nylatron seal added to the front of the bearing.

Bore dimensions are interchangeable throughout F-series 1625-1775 bearings.

Products specifications
(A) Bearing Body Diameter 1.701" -1.711"
(B) Bearing Insertion Depth 0.3594" (23/64")
(C) Bore Extension 0.1719" (11/64")
(D) Length through Bore 0.531" (17/32")
(E) Flange Diameter 1.84" (1-27/32")
Load Rating 135#
BORE SIZE 0.451/0.450" (7/16" Hex)
Weight / 1,000 pcs 175 Lbs (79.37 kg)
Tube Size / Material (!!REF. ONLY!!) 1.9"O.D. x 12ga (1.682" I.D.)
