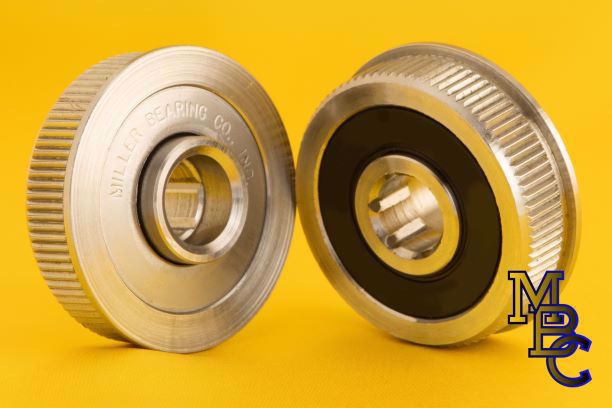

Contains 8 - 17/64" 316 SS Diameter balls and a Nylon Retainer.

The Inner race and Outer race are 316 SS.

These bearings are produced with a 16 teeth per inch knurl on the outside body of the bearing, (Dimension), to assist in the assembly of the roll.

May be ordered with light oil or grease packed lubricant.

DS following the part number designates a front and a back Nitrile seal. The DS is standard on the FR Series.

Contains 8 - 17/64" 316 SS Diameter balls and a Nylon Retainer.

The Inner race and Outer race are 316 SS.

These bearings are produced with a 16 teeth per inch knurl on the outside body of the bearing, (Dimension), to assist in the assembly of the roll.

May be ordered with light oil or grease packed lubricant.

DS following the part number designates a front and a back Nitrile seal. The DS is standard on the FR Series.

Products specifications
(A) Bearing Body Diameter 1.775" - 1.785"
(B) Bearing Insertion Depth 0.4531" (29/64")
(C) Bore Extension 0.2188" (7/32")
(D) Length through Bore 0.672" (43/64")
(E) Flange Diameter 1.88" (1-7/8")
Load Rating 140#
BORE SIZE 0.451/0.450" (7/16" Hex)
Tube Size / Material (!!REF. ONLY!!) 1.9"O.D. x 16ga (1.770"I.D.)
Weight / 1,000 pcs 275 Lbs (124.73 kg)
