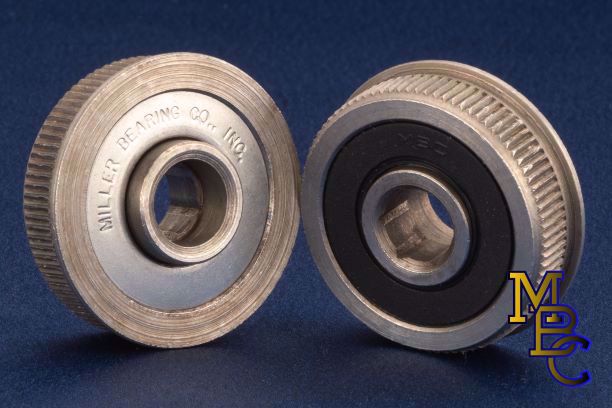

Contains 8 - 17/64" Diameter balls and a Nylon Retainer.

These bearings are produced with a 16 teeth per inch knurl on the outside body of the bearing, (Dimension), to assist in the assembly of the roll.

May be ordered with light oil or grease packed lubricant.

DS following the part number designates a front and a back Nitrile seal. The DS is standard on the FR Series.

!!~UNCOMMON BORE EXTENSION~!!
CURRENTLY UNAVAILABLE
MINIMUM ORDERS REQUIRED (10,000)

Contains 8 - 17/64" Diameter balls and a Nylon Retainer.

These bearings are produced with a 16 teeth per inch knurl on the outside body of the bearing, (Dimension), to assist in the assembly of the roll.

May be ordered with light oil or grease packed lubricant.

DS following the part number designates a front and a back Nitrile seal. The DS is standard on the FR Series.

!!~UNCOMMON BORE EXTENSION~!!
CURRENTLY UNAVAILABLE
MINIMUM ORDERS REQUIRED (10,000)

Products specifications
(A) Bearing Body Diameter 1.775" - 1.785"
(B) Bearing Insertion Depth 0.4531" (29/64")
(C) Bore Extension 0.1875" (3/16")
(D) Length through Bore 0.641" (41/64")
(E) Flange Diameter 1.88" (1-7/8")
Load Rating 428#
BORE SIZE 0.451/0.450" (7/16" Hex)
Tube Size / Material (!!REF. ONLY!!) 1.9"O.D. x 16ga (1.770"I.D.)
Weight / 1,000 pcs 275 Lbs (124.73 kg)
