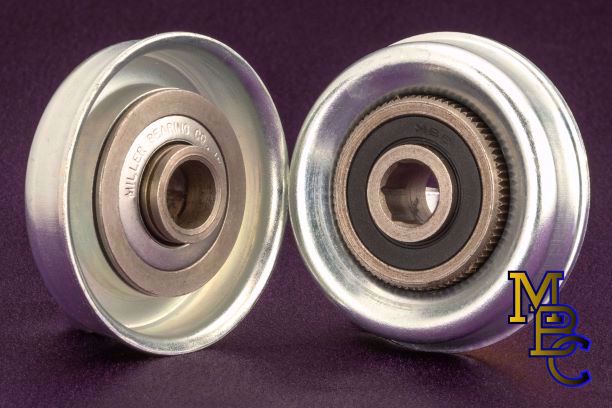

This assembly uses the F-2340 EC adapter with the FR-1498-7HDS bearing pressed into the adapter.

Often used in tapered roller designs.

May be ordered with light oil or grease packed lubricant.

DS following the part number designates a front and a back Nitrile seal. The DS is standard on the FR Series.

This assembly uses the F-2340 EC adapter with the FR-1498-7HDS bearing pressed into the adapter.

Often used in tapered roller designs.

May be ordered with light oil or grease packed lubricant.

DS following the part number designates a front and a back Nitrile seal. The DS is standard on the FR Series.

Products specifications
(A) Bearing Body Diameter 2.330
(B) Bearing Insertion Depth 0.528"
(C1) Inside Diameter 1.500/1.495"
(D) Length through Bore 0.719" (23/32")
(E) Flange Diameter 2.50" (2-1/2")
Load Rating 302#
BORE SIZE 0.451/0.450" (7/16" Hex)
Tube Size / Material 2-1/2" O.D. x 14ga (2.334" I.D.)
Weight / 1,000 pcs 331.25 Lbs
