LF-1775-7H 🟨

Previous productFR-2340EC-7HDS
Next productMF-1710-7H 🛑

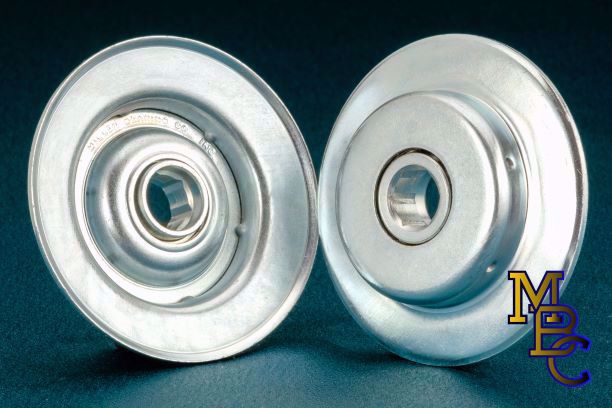

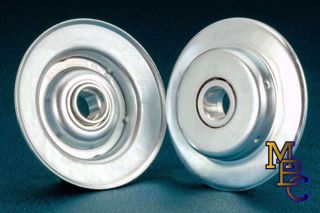

Picture of LF-1775-7H 🟨 Picture of LF-1775-7H 🟨

RESOURCES



TEMPERATURE RATINGS



HEX BORE MEASURING GUIDE



Be the first to review this product

Contains 11- 1/4" balls.

May be ordered with light oil or grease packed lubricant.

T added to the end of the part number designates a nylatron seal added to the front of the bearing.

!!~~LIMITED QUANTITIES AVAILABLE~~!!
PLEASE CALL


Contains 11- 1/4" balls.

May be ordered with light oil or grease packed lubricant.

T added to the end of the part number designates a nylatron seal added to the front of the bearing.

!!~~LIMITED QUANTITIES AVAILABLE~~!!
PLEASE CALL


Products specifications
(A) Bearing Body Diameter 1.775" - 1.785"
(B) Bearing Insertion Depth 0.3594" (23/64")
(C) Bore Extension 0.3125" (5/16")
(D) Length through Bore 0.672" (43/64")
(E) Flange Diameter 2.75" (2-3/4")
Load Rating 135#
BORE SIZE 0.451/0.450" (7/16" Hex)
Tube Size / Material (!!REF. ONLY!!) 1.9"O.D. x 16ga (1.770"I.D.)
Weight / 1,000 pcs 231.25 Lbs (104.89 kg)
