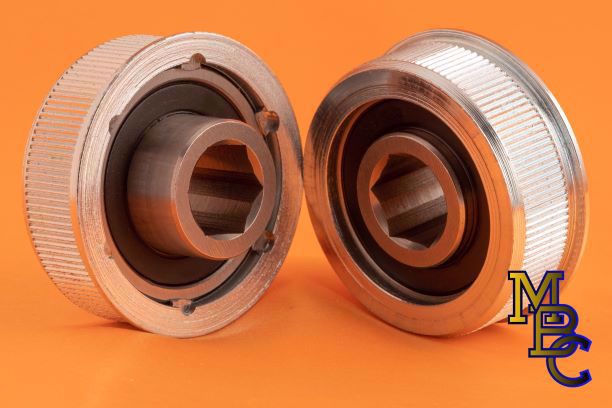

This assembly incorporates a custom designed ABEC-1 Precision Bearing pressed into our traditional "FR" Series style housing with a 16 teeth / inch knurl to assist in the assembly of the roller.

Bearing Construction:
Custom ABEC-1 Precision Bearing construction: AISI52100 Steel ~ Nitrile Seals ~ Nylon Ball retainer
Outer Cup Construction: Zinc plated Steel

Using standard dimensions as our Semi-Precision "FR" series bearings results in minimal / no modification in current roller assembly processes for OEM's.

Same Tooling; Same Process; Superior Product!

This assembly incorporates a custom designed ABEC-1 Precision Bearing pressed into our traditional "FR" Series style housing with a 16 teeth / inch knurl to assist in the assembly of the roller.

Bearing Construction:
Custom ABEC-1 Precision Bearing construction: AISI52100 Steel ~ Nitrile Seals ~ Nylon Ball retainer
Outer Cup Construction: Zinc plated Steel

Using standard dimensions as our Semi-Precision "FR" series bearings results in minimal / no modification in current roller assembly processes for OEM's.

Same Tooling; Same Process; Superior Product!

Products specifications
(A) Bearing Body Diameter 2.280" - 2.290"
(B) Bearing Insertion Depth 0.7188" (23/32")
(C) Bore Extension 0.4688" (15/32")
(D) Length through Bore 1.187" (1-3/16")
(E) Flange Diameter 2.44" (2-7/16")
BORE SIZE 0.703/0.698" (11/16" Hex)
Load Rating 2800#
Tube Size / Material (!!REF. ONLY!!) 2-1/2"O.D. x 11ga (2.260" I.D.)
Weight / 1,000 pcs 629 Lbs (285.31 kg)
