PFR-2340EC-7HDS

Previous productPFR-2280-11HDS

Next productR-1125-4DS

Picture of PFR-2340EC-7HDS

Picture of PFR-2340EC-7HDS

Picture of PFR-2340EC-7HDS

Picture of PFR-2340EC-7HDS

Be the first to review this product

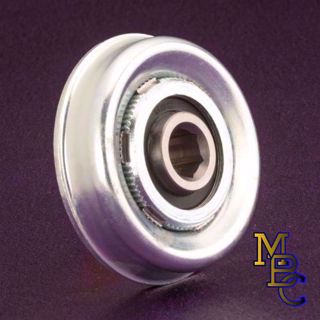

This assembly uses the F-2340 EC adapter with the Precision ABEC-1 PFR-1498-7HDS bearing pressed into the adapter.

Often used in tapered roller designs.

This assembly uses the F-2340 EC adapter with the Precision ABEC-1 PFR-1498-7HDS bearing pressed into the adapter.

Often used in tapered roller designs.

Products specifications

(A) Bearing Body Diameter	2.330" - 2.340"
(B) Bearing Insertion Depth	0.528"
(C) Bore Extension	0.2188" (7/32")
(C1) Inside Diameter	1.500/1.495"
(D) Length through Bore	0.719" (23/32")
(E) Flange Diameter	2.50" (2-1/2")
BORE SIZE	0.451/0.450" (7/16" Hex)
Load Rating	302#
Tube Size / Material (!!REF. ONLY!!)	2-1/2" O.D. x 14ga (2.334" I.D.)
